UGS ATA Installs

This is the Grandstream ATA.

- 2 Ethernet connections (RJ-45 ports) -

Globe Port = WAN (Wide Area Network, or Internet port)

"3 Squares" = LAN Port (Local Area Network port. Probably won't be used.

This is, by default is a DHCP Port, from the WAN Port.

The Green Phone Ports (RJ-11 ports)

- Watch these. They're backwards.

Port 1 = Right side (not left)

This unit is Not POE (Power over Ethernet) and will

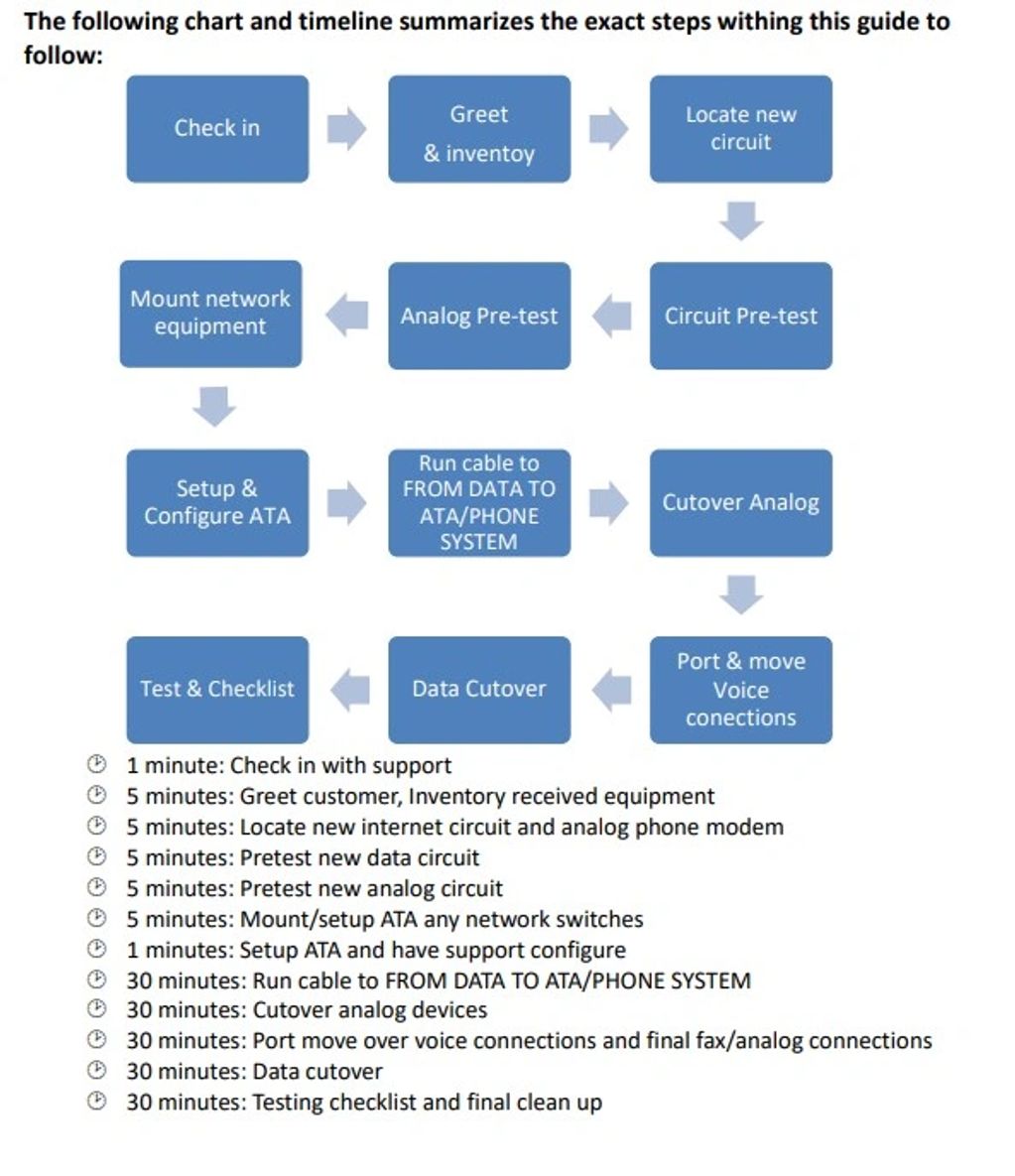

Here's the Timeline for an ATA Install.

This is what to expect.

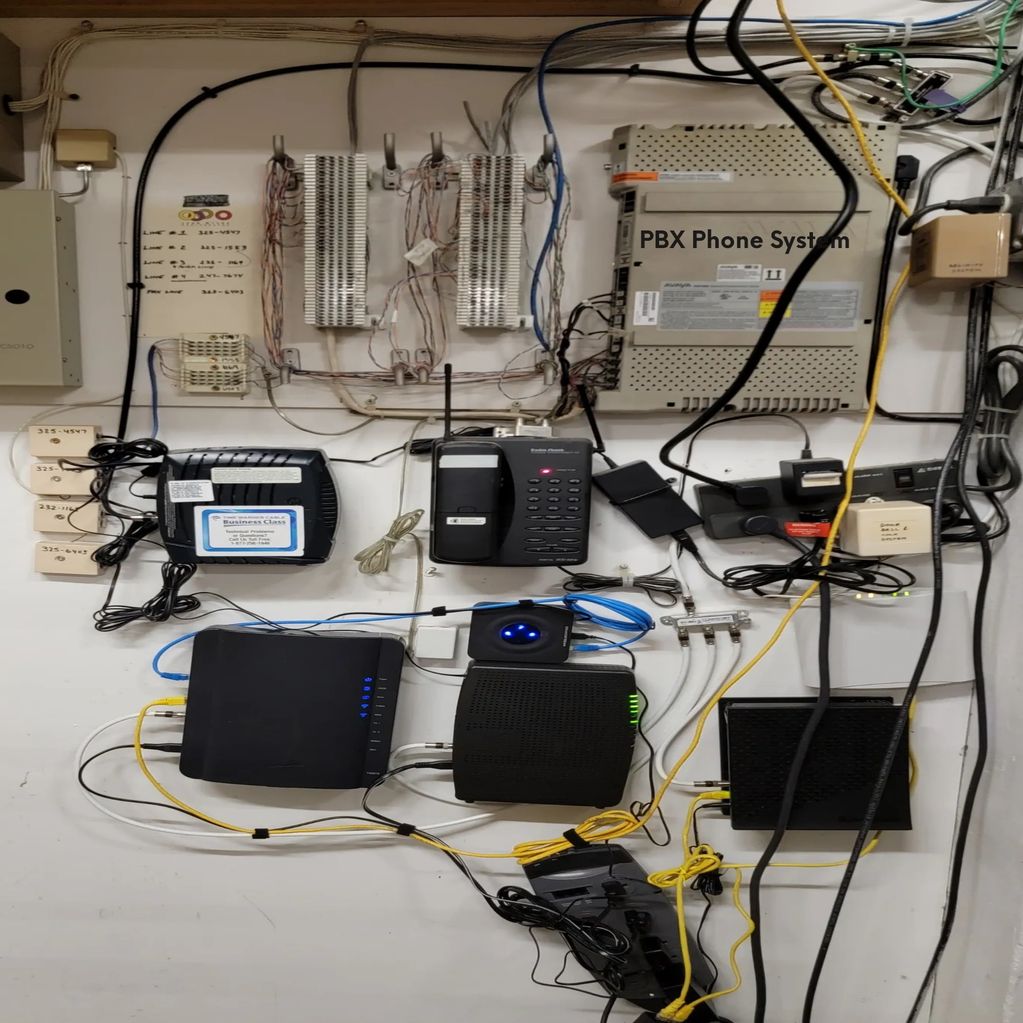

Here's the Network Topology of an ATA Install.

We change the dial tone, from the ISP Voice Modem, to the Grandstream ATA

-

The overall idea is it take the phone lines from the Voice Modem to and plug them the ATA.

By Switching the RJ-11 Phone cords from the ISP Voice Modem, to the Grandstream ATA, Unified Global Solution is now providing Dial tone to the Customer's existing PBX, out to their Phone system.

We are Now Their Phone Carrier
